Home Product Tensile Strength Tester Series
Tensile Strength Tester Series

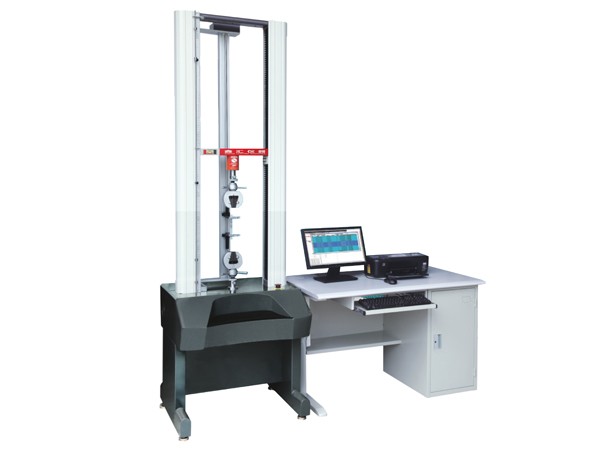

XH-3236 Double Column Servo Control Stytem Universal Testing Machine

技術參數：型號XH-3236容量選擇100, 200, 500N; 1, 2, 5 kN單位切換kgf,lbf,N,kN,kPa,MPa感應方式?LOAD CELL力量感應器顯示方式電腦系統分解度1/300,000電腦拉力機專用程序最大行程(不含夾具）1200 mm有效寬度?360?mm位移分解0.0004?mm測試速度0.01~1000 mm/min體積&

Detailed

Technical parameter：

Model

XH-3236

Capacity(optiona

100, 200, 500N; 1, 2, 5 kN

 Unit(switchable)

kgf,lbf,N,kN,kPa,MPa

Induction mode

 LOAD CELL

 Display mode

computer system

Resolution

1/300,000

Software

Special program for tensile machine

Max.Stroke（excluding the grips)

1200 mm

 Effective width

 360 mm

Stroke resolution

0.0004 mm

 Test speed

0.01~1000 mm/min

Dimension(WxDxH)

  660X650X2100 mm

 Weight(approx.)

 156 kg

Power

1∮, AC 220V, 50Hz Or designated by country



If there is any change in product specifications, we will not inform you otherwise. Please take the actual quotation as the criterion！
